8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications

  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
  • 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications
Herkunftsort Jiangsu, China
Markenname VIC-TECH
Zertifizierung RoHS
Modellnummer PM08-002
Min Bestellmenge 1
Preis $2-6.50

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype-Anwendung: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Motordurchmesser 8mm Motorhöhe 9.2MM
Schachtdurchmesser 0,8 mm Schachtlänge 4mm
Phase 2 Kabel 4
Nennspannung DC3.3V Strom pro Phase 385 mA
Schrittwinkel 18 Grad Schritte pro Umdrehung 20
Leitspindel-Durchmesser φ3,5 mm Leitspindel-Führung 0,3 mm
Lineare Reise pro Schritt 0,0015 mm/Schritt Widerstand pro Phase 20.4Ω±10%
Induktivität pro Phase 5,0 mH ± 20%
Hervorheben

385mA Current Micro Stepper Motor

,

DC3.3V Rated Voltage Miniature Stepper Motor

,

18 Degree Step Angle PM Stepper Motor
Hinterlass eine Nachricht
Produkt-Beschreibung
8mm Diameter 2-phase 4-wire Micro Stepper Motor with Copper Gear

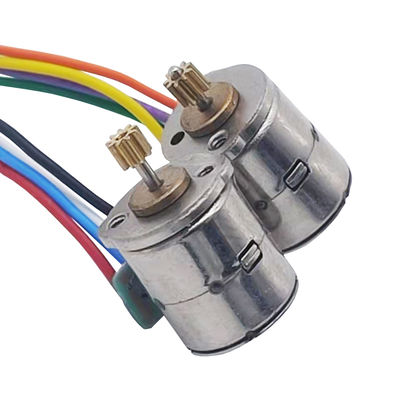

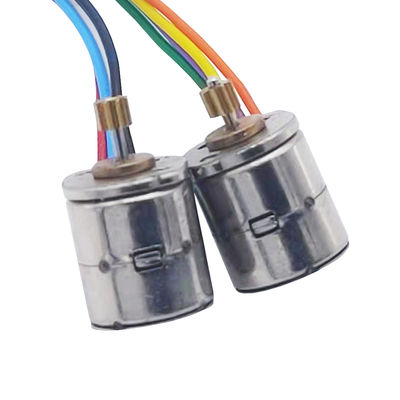

8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 0 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 1

The PM08-2 is a micro stepper motor featuring 2-phase 4-wire configuration. This miniature stepper motor is designed for precision applications with its compact dimensions (8mm diameter, 9.2mm height excluding bearing sleeve).

Key Features
  • Rated Voltage: DC3.3V
  • Output shaft diameter: 0.8mm (4mm length above belt gear)
  • Basic step angle: 18 degrees (20 steps per revolution)
  • Includes 2 motors with common wiring (can be separated)
  • Ideal for camera focusing systems and precision applications
Applications
This high-precision miniature stepper motor is widely used in:
  • Camera systems and optical instruments
  • Lens mechanisms and flashlights
  • Precision medical equipment
  • Automatic door locks
  • Other compact motion control applications
Product Images
8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 2 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 3
Design Layout (Unit:mm)
8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 4
Specifications
Motor diameter 20mm
Motor type Hybrid stepper motor
Lead screw diameter φ3.5mm
Lead screw lead 0.3mm
Linear travel per step 0.0015mm/step
Motor's phase 2
Step angle 1.8 degree
Rated voltage 5V
Rated current/phase 0.24A
Resistance/phase 20.4Ω±10%
Inductance/phase 5.0mH±20%
Insulation resistance 100MΩ（500VDC）
Insulation class B
Heat rise 80℃
Minimal Thrust /300pps 2.4KG
Packing & Delivery
8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 5

Selling Units: Single item in plastic box, outer paper box packaging

Package: Single carton packing, 100-1000 pieces per box

Lead Time: 30 Days After Deposit

Company Profile
8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 6 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 7 8mm Diameter 2-phase 4-wire Micro Stepper Motor with 385mA Current and 18 Degree Step Angle for Precision Applications 8

Changzhou Vic-Tech Motor Technology Co., Ltd has been specializing in producing micro motors and accessories since 2011. Our main products include micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers.

With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, dependability and quality, Vic-Tech Motor continues to pioneer in global markets by seeking international partners.

FAQ
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
2. How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment.
3. What can you buy from us?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering custom design and development services for micro stepper motors, geared motors, underwater thrusters, and motor controllers.
5. What services can we provide?

Delivery Terms: FOB, CIF, EXW, DDP

Payment Currency: USD, EUR, CNY

Payment Type: T/T, Credit Card, PayPal, Cash

Languages: English, Chinese
