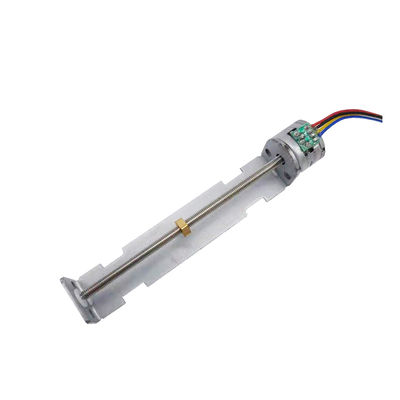

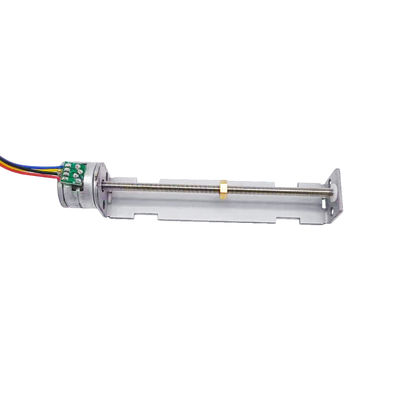

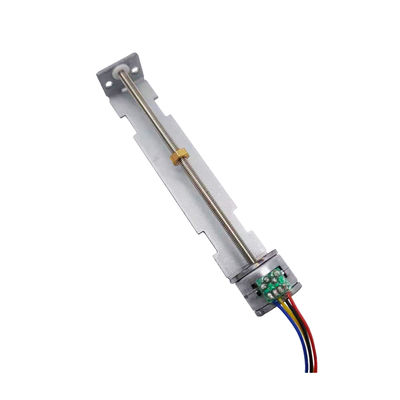

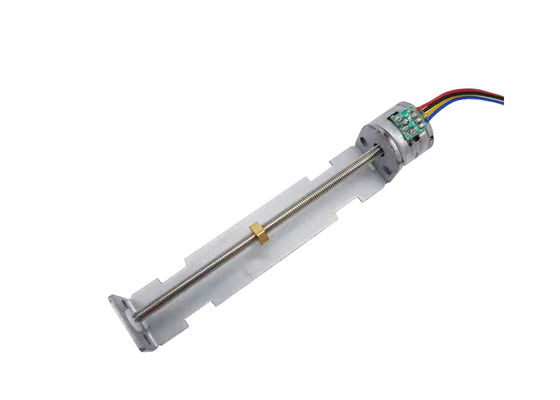

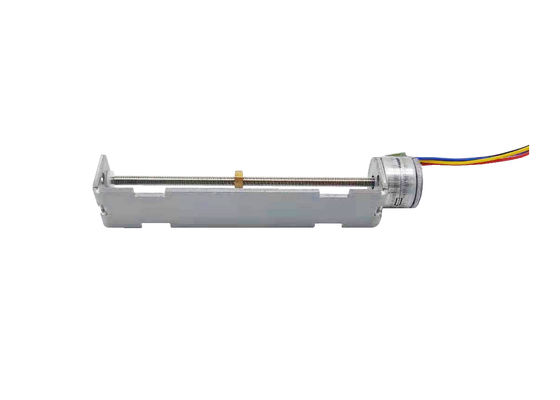

9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control

  • 9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
  • 9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
  • 9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
  • 9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
  • 9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
  • 9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control
Herkunftsort Jiangsu, China
Markenname Vic-tech
Zertifizierung ISO
Modellnummer SM15-77L
Min Bestellmenge 2
Preis $2.85-15

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype-Anwendung: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Phase 2, 2 Typ Permanenter Magnet
Aktuell 400 MA Nennspannung 9V
Spulenwiderstand 15Ω±10% Schrittwinkel 18 Grad
Zugantrieb 500 g Schraubtyp M3P0.5
Maximale Reaktionsfrequenz 1200 pps Maximale Anlauffrequenz 900 PPS
Auszugsmoment 230 g (bei 500 pps, 6 V DC) Isolationsklasse Klasse E
Isolierungs-Stärke 100 V AC für 1 Sekunde Isolationsresistenz 50 MΩ (DC 500 V)
Betriebstemperatur -0 ~ +55 ℃
Hervorheben

9V Rated Voltage Linear Stepper Motor

,

M3P0.5 Screw Linear Stepper Motor

,

Customizable Nuts Linear Stepper Motor
Hinterlass eine Nachricht
Produkt-Beschreibung
2 Phase 4 Wire Stepper Motor 15mm Linear Actuator Screw Slider
9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control 0
15mm Micro Slider Linear Stepping Motor
9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control 1
The SM15-77L Copper slider is a precision micro step motor featuring an output shaft with M3 P0.5mm pitch screw. The screw mechanism converts rotational motion into precise linear thrust.
With a basic step angle of 18 degrees (20 steps per revolution), this motor achieves displacement resolution of 0.02mm for exceptional precision control. The actuator utilizes subdivision drive technology for smooth operation.
Compact size, high precision, and easy control make this micro stepper motor ideal for applications including:
  • Camera systems and optical instruments
  • Lens positioning mechanisms
  • Precision medical devices
  • Automatic door locks
Customization options include:
  • Input connection types: FPC, connecting wire needle, or PCB
  • Custom mounting brackets available
  • Nuts can be customized to requirements
Technical Specifications
Product Name 15mm Linear Stepper Motor
Model SM15-77L Copper slider
Max. Response Frequency ≥1200 PPS
Max. Starting Frequency ≥900 PPS
Pull Out Torque ≥230g (at 500PPS, 6V DC)
Insulation Class Class E for coils
Insulation Strength 100V AC for one second
Insulation Resistance 50MΩ (DC 500V)
Operating Temperature -0°C to +55°C
Customization OEM & ODM services available
Wire Connection Options
Motor input methods include pin type, FPC, PCB, or lead wire configurations. Custom solutions available to meet specific application requirements.
9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control 2
Basic Drawing: NEMA6 Linear Stepper Motor
12VDC bipolar 15mm micro slider screw motor with bracket, suitable for disinfection equipment and other precision applications.
9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control 3
About Changzhou Vic-Tech Motor Technology Ltd.
We are professional manufacturers and research institution specializing in brushless motor development, motor application solutions, and motor processing. Located in Changzhou, Jiangsu Province (known as the 'City of Chinese Micro Motor'), we benefit from excellent logistics and proximity to major transportation hubs.
Our capabilities include:
  • Decades of motor research and development experience
  • Professional engineering team for custom solutions
  • 4 manufacturing facilities in Shenzhen, Changzhou and Dongguan
  • ISO9001:2008 certified production
  • Capacity for large volume orders
Frequently Asked Questions
1. How about the quality of your products?
We maintain high quality standards with positive feedback from global clients. Our product complaint rate remains below 1%. Any issues during warranty period are addressed immediately.
2. Are you a manufacturer?
Yes, we are direct manufacturers with our own factory in Changzhou, China. We specialize in producing and exporting various motor types including this precision stepper motor series.
9V Rated Voltage Linear Stepper Motor with M3P0.5 Screw and Customizable Nuts for Precision Control 4
