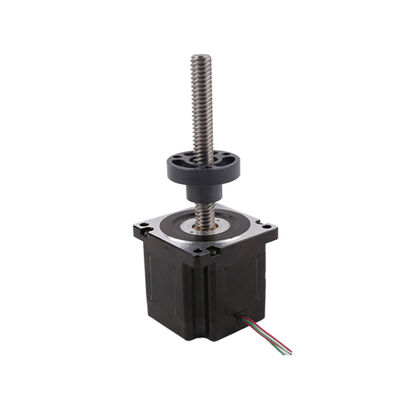

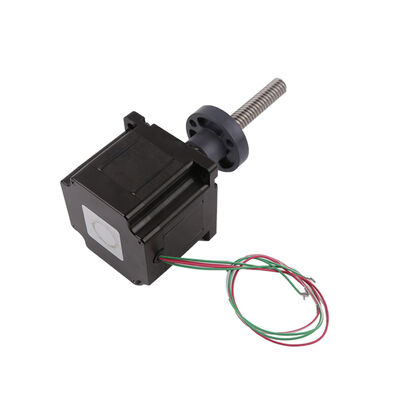

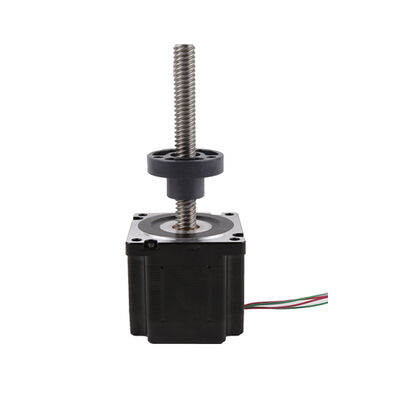

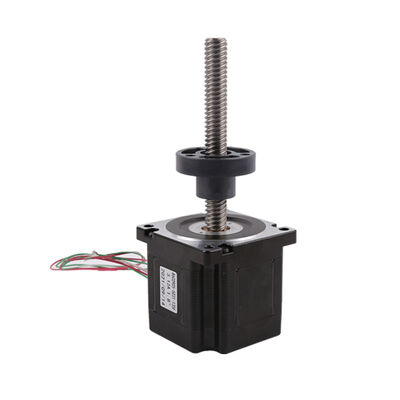

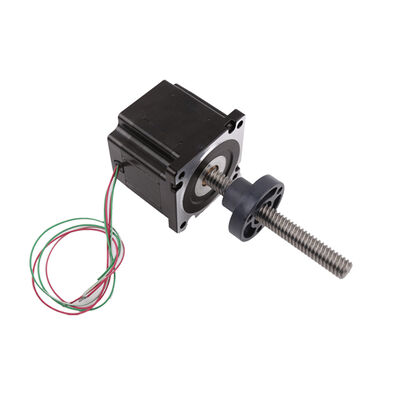

NEMA34 stepper motor with straight T-shaped screw and nut motor

This motor has a diameter of 86mm and a T-shaped screw with a nut, making it a very classic and powerful high-precision linear motion solution. It perfectly combines the advantages of stepper motors and the mechanical structure of screw rods, and is widely used in scenarios that require precise position control and reliable holding force
The hybrid stepper motor has a natural magnetic resistance holding torque when powered off, and with the mechanical self-locking of the screw (especially the trapezoidal screw), it can firmly maintain its position in the absence of power, saving energy and improving safety.
Customers can choose the thickness of the motor according to their needs to meet installation requirements

Mechanical Dimension:MM

Technical Features

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

Typical Applications

• This combination is very suitable for scenarios that require medium to large loads, medium to low speeds, and precise point control:
•
  3D printer (large/industrial grade): controls the precise movement of the print head or platform.
•
  CNC machine tool: Drive the feed of the tool holder and worktable on the X/Y/Z axes.
•
  Automated assembly equipment: used for precision part handling, alignment, and pressing.
•
  Laser cutting/engraving machine: Control the scanning path of the laser head.
•
  Medical equipment: such as sample injection pumps, scanner mobile platforms.
•
  Laboratory instruments: positioning of the stage for spectrometers and microscopes.
•
  Packaging machinery: fixed length cutting, packaging position control.

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
